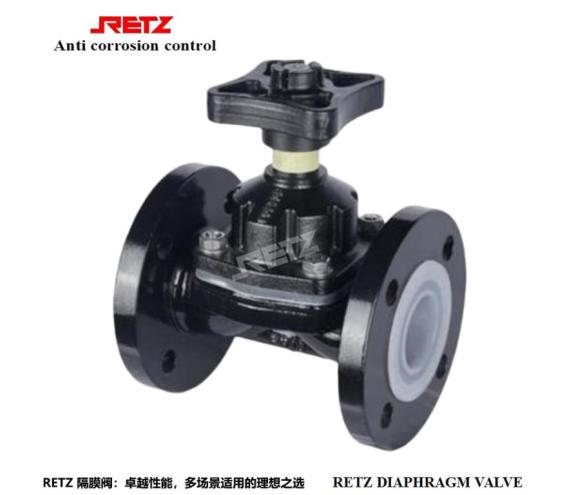

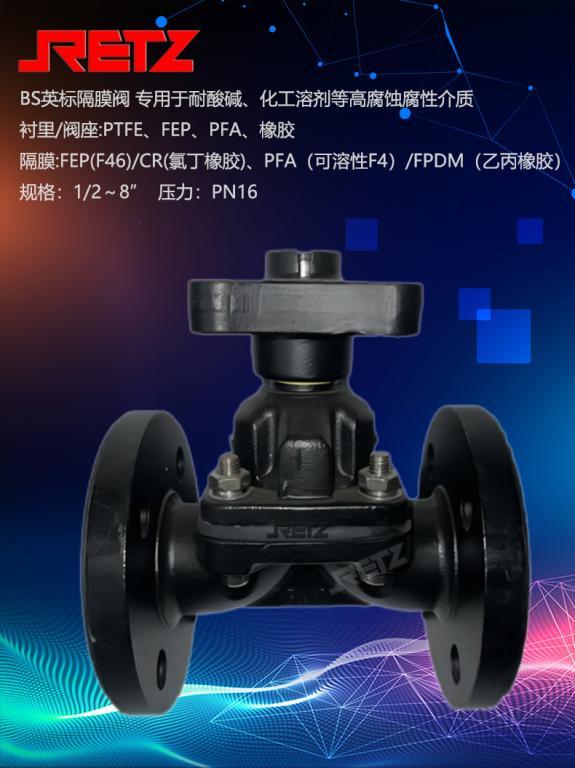

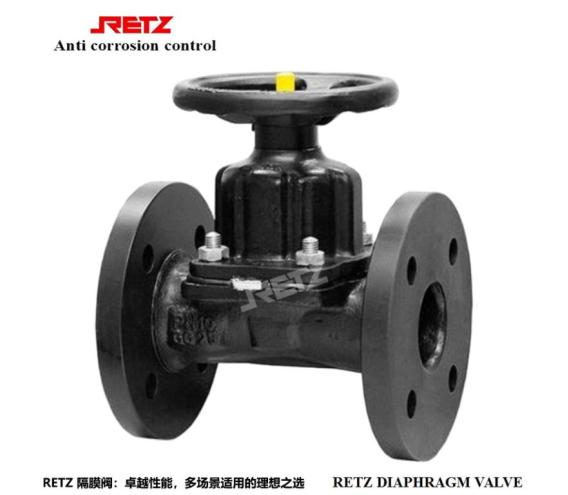

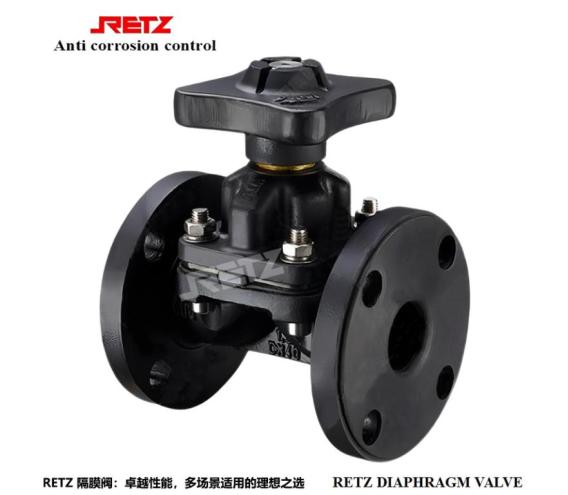

進口英標隔膜閥關閉件-軟質隔膜，由閥桿控制并做上、下運動以切斷介質。操縱機構和介質由隔膜隔開，只有閥體和隔膜會與介質相接觸，其他的閥桿及零部件等并不會接觸，因此常常用于衛生級管道環境和有著特殊介質接觸規定的環境Retz Imported BS British standard diaphragm valve closure component - soft diaphragm, controlled by the valve stem and performing up and down movements to cut off the medium. The operating mechanism and medium are separated by a diaphragm, and only the valve body and diaphragm will come into contact with the medium. Other valve stems and components will not come into contact, so they are often used in sanitary pipeline environments and environments with special medium contact regulations

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……

規格尺寸：DN15～DN200”

適用壓力：PN16

適用溫度：-20~100℃~180℃

控制Control: 手動、氣動、電動Manual, pneumatic, electric

進口英標隔膜閥主要性能Main performance

1.閥座零泄漏 Zero leakage of valve seat

可撓性隔膜將流體隔斷，因此閥座無泄漏The flexible diaphragm blocks the fluid, so the valve seat has no leakage

采用橡膠隔膜時，即使流體內有些異物夾雜也能完全切斷When using rubber diaphragm, even if there are some foreign matters in the fluid, it can be completely cut off

2.耐蝕性、耐化學性優異 Excellent corrosion resistance and chemical resistance

通過橡膠、氟樹脂等各種襯里閥體和豐富的隔膜材料相組合，可制造適合各種流體規格的閥，性價比優于特殊合金類材料Through the combination of rubber, fluororesin and other lining valve bodies and abundant diaphragm materials, valves suitable for various fluid specifications can be manufactured, and the cost performance is better than that of special alloy materials

RETZ的隔膜閥可以滿足工控系統的截斷、調節、防腐、粘性流體、纖維質流體、泥漿、污泥、懸浮固態物、衛生潔凈等流體的控制RETZyesyesyesTimes New RomanyesTimes New RomanyesTimes New RomanyesTimes New Roman';mso-fareast-font-family:宋體; font-size:10.5000pt;mso-font-kerning:1.0000pt;">
